Wall Mounted Vibration Isolator Kit

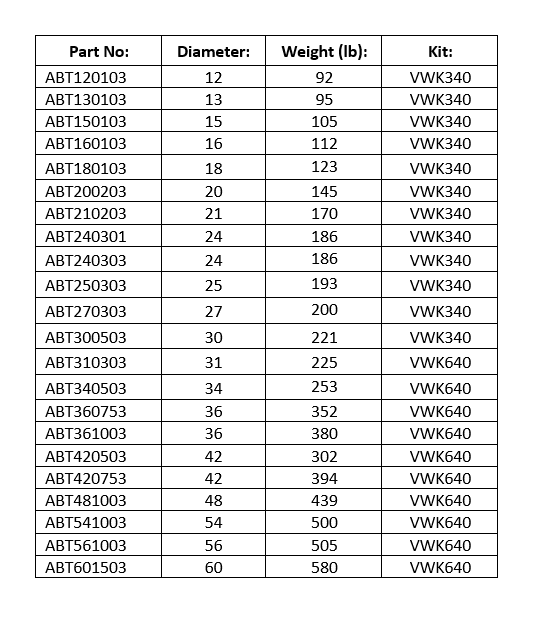

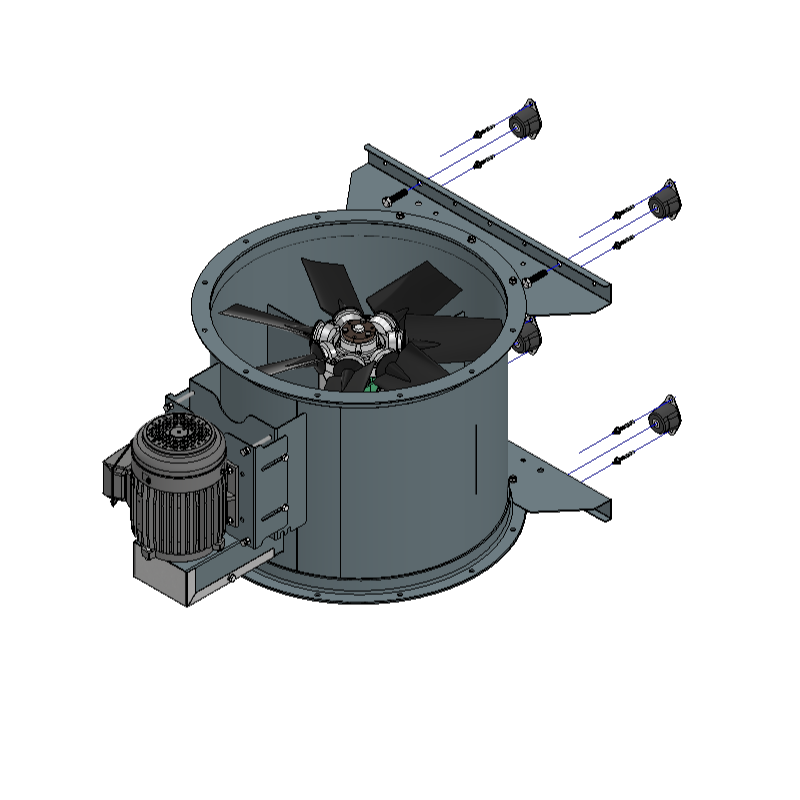

Our Wall Mount Vibration Isolator Kits include four captive elastomeric isolators and mounting hardware.  The kit provides effective vibration control for use with any wall mounted industrial, medical or computer equipment.  Each isolator has structural steel sections molded in place inside an elastomeric housing. Two clearance holes and one tapped hole are provided for mounting.  Axial Fan Brackets for use with Cook Tube Axial fans are linked below.  VWK340 can be paired with our Tube Axial Fans up to 30 inches in diameter, and VWK640 can be paired with fans 31 inches or greater in diameter.

Includes:

4 – Color Coded Elastomeric Isolators

8 – 1/4″-20 x 2-1/4″ Diameter Concrete Anchors

4 – 1/2″-13 x 1″ Hex Head Bolt

Specifications:

• Material: Neoprene
• Maximum Temperature: 200°F
• Minimum Temperature: -22°F
