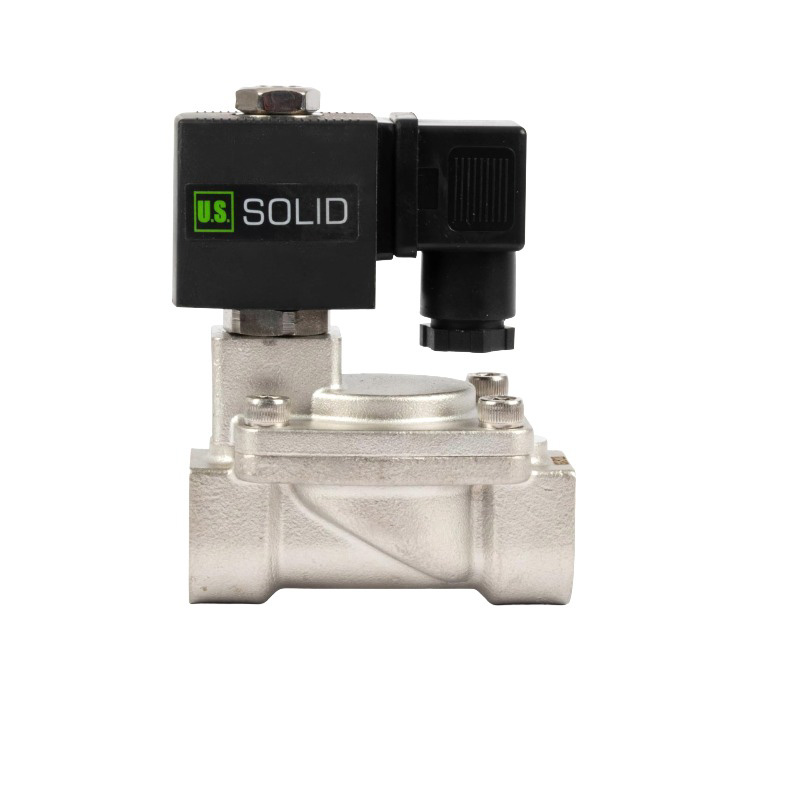

Air Solenoid Valves

Air Solenoid valves are used to interrupt the supply of compressed air during potentially unsafe conditions. The air solenoid valve prevents the paint spraying equipment from being used while the exhaust fan is off. This solenoid can also be wired to door limit switches which will prevent the spray equipment from being used if a door is left open. Available in standard manifold sizes of 1/2″ NPT, 3/4″ NPT, and 1″ NPT.

Features:

• Can Be Oriented In Any Position
• Compact Design
• Field Replaceable Coils
• Suitable For Air, Diesel, Kerosene, Oil, Water, Etc
• Rated for Continuous Operation

Specifications:

• Body Material: Stainless Steel
• Voltage: 110 VAC
• Amperage: 0.18A
• Operating Mode: Normally Closed
• -22 to 302 °F Operating Temperature
• 4.35 to 232.0 PSI Operating Pressure Range
• Female NPT End Connections
